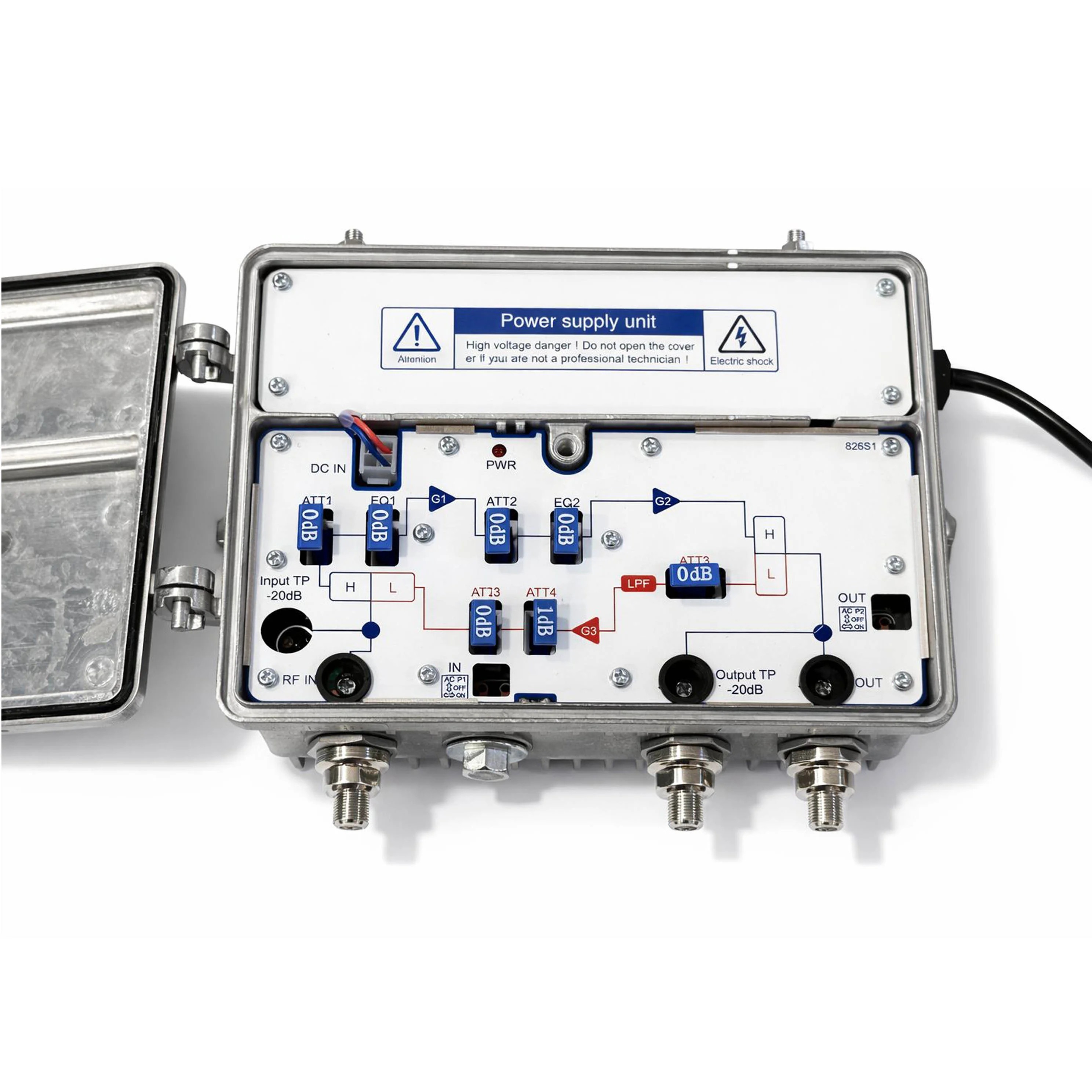

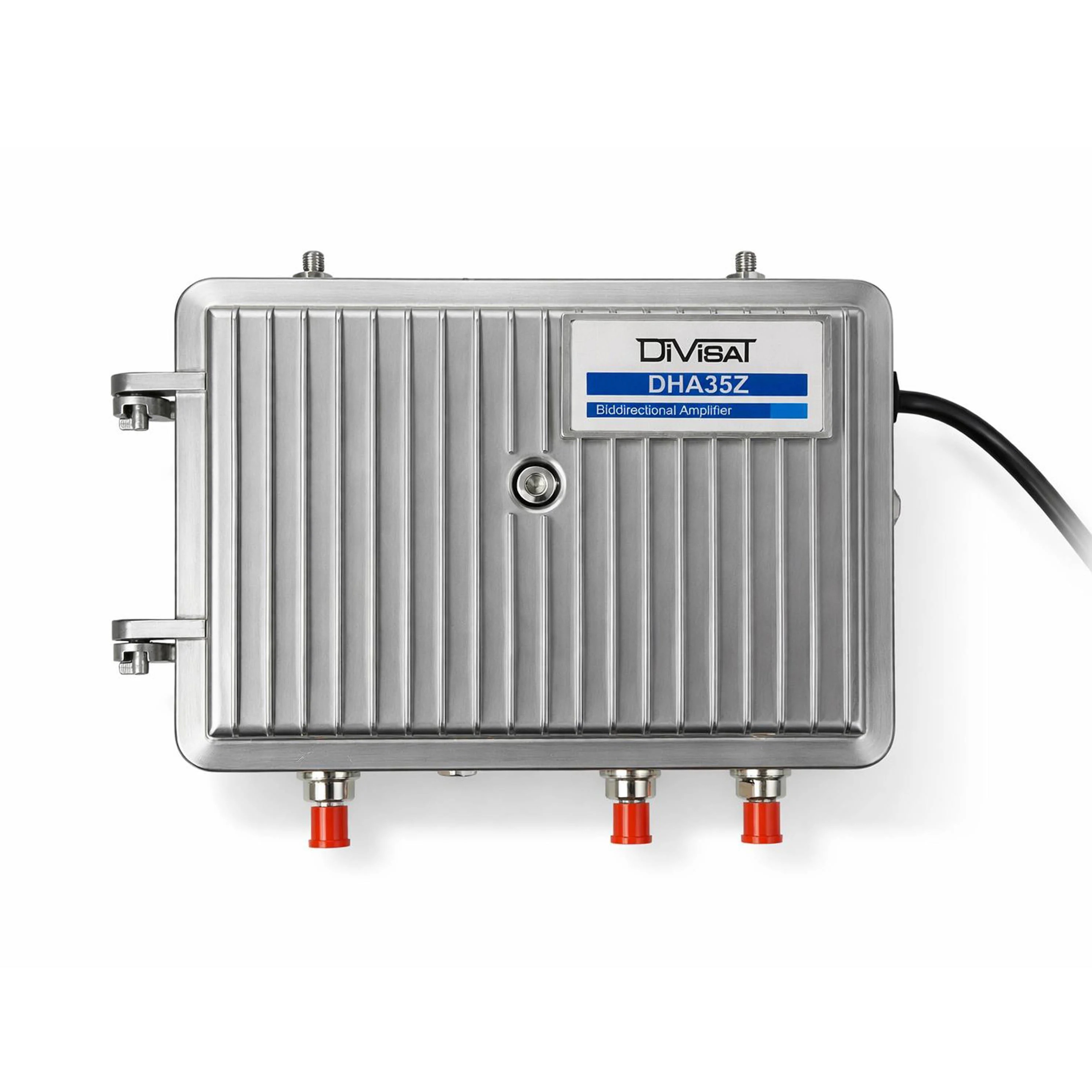

| DHA 35Z | UNIT | VALUE | |
|---|---|---|---|
| Forward | Reverse | ||
| Pass Band | MHz | 85-1218 | 5-65 |
| Flatness | dB | ±0.75 | ±0.75 |
| Minimum Full Gain | dB | ≥35 | 25 |
| Attenuator Adjustable Range | dB | 0-20, 1dB step | 0-20, 1dB step |
| Equalizer Adjustable Range | dB | 0-20, 1dB step | 0-5, 1dB step |
| RF Test Point | dB | -20±1.5 | -20±1.5 |
| Reference Output Level | dBμV | 108 | 100@30MHz ( Nominal Input Level 80 dBμV ) |
| Max Output Level | dBμV | 120 (42 channels CENELEC) | 110 (F1=65MHZ, F2=63MHZ, F3=57MHZ ) |
| Return Loss | dB | ≥ 16@85-1000 MHz ≥ 14@1001-1218 MHz |
≥16 |
| Max. Current for RF/AC in Ports | A | 10 | |
| Direct Current ( 24V ) | A | 0.4 | 0.2 |
| Noise Figure | dB | ≤ 6.5( 0dB Equalizer ) | ≤ 6.5 ( 0dB Equalizer ) |
| Group Delay | ns | ≤ 10 ( 112.25MHz/116.68MHz ) | ≤ 20 ( 57MHz/59MHz ) |
| Gain Stability | dB | ±1 | ±1 |
| CTB | dB | ≥ 65 | ≥ 88 |
| CSO | dB | ≥ 65 | ≥ 80 |
| C/M | dB | ≥ 69 | ≥ 82 |
| Signal to AC Ratio | % | < 2 | |
| Stationary Wave Ratio (VSWR) | dB | ≤ 1.2 | |
| Operating Temperature | °C | -40~60 | |
| Thunderstroke Immunity | kV | > 5 ( 10/700μs ) | |
| Supply Voltage | V | AC30~90 & AC150~250 or Customized | |
| Input Electrical Surge | V | ≥ 250 | |
| Power Consumption | W | < 14 | |
| Dimensions ( L*W*H ) | mm | 239*177*92 | |
