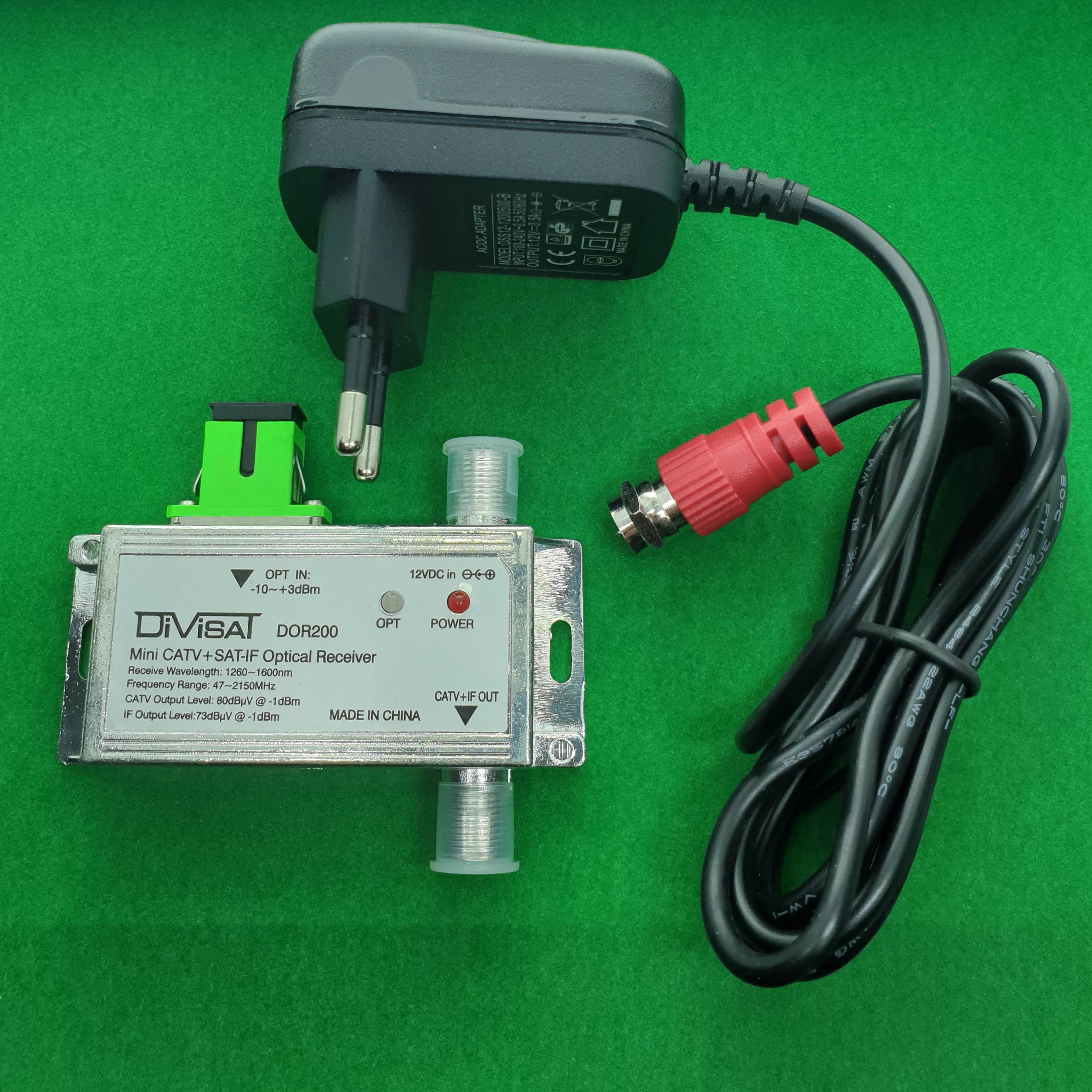

DİVİSAT DOR 200 - Fiber Optik Receiver

Number Item	Unit	Description	Remark
Customer Interface
RF Connector		F-female
Optical Connector		SC/APC or FC/APC
Power Supply		F-female
Optical Parameter
Responsivity	A/W	≥0.9
Input Optical Power	dBm	-10 ~ +3 -7 ~ +2	AGC
Optical Return Loss	dB	≥45
Input Wavelength	nm	1550±20
Optical Fiber Type		Single Mode
RF Parameter
Frequency Range	MHz	47-860 950-2150	Receive CATV signal Receive SATV signal
Flatness	dB	±0.75
Output Level	dBμV	≥80 @CATV ≥70 @SATV	-1dBm input power
CNR	dB	≥50	-1dBm input power
CSO	dB	≥62
CTB	dB	≥65
Return Loss	dB	≥16
Output Impedance	Ω	75
Other Parameter
Power Supply	VDC	12
Power Consumption	W	<2
Dimensions	mm	1009828
